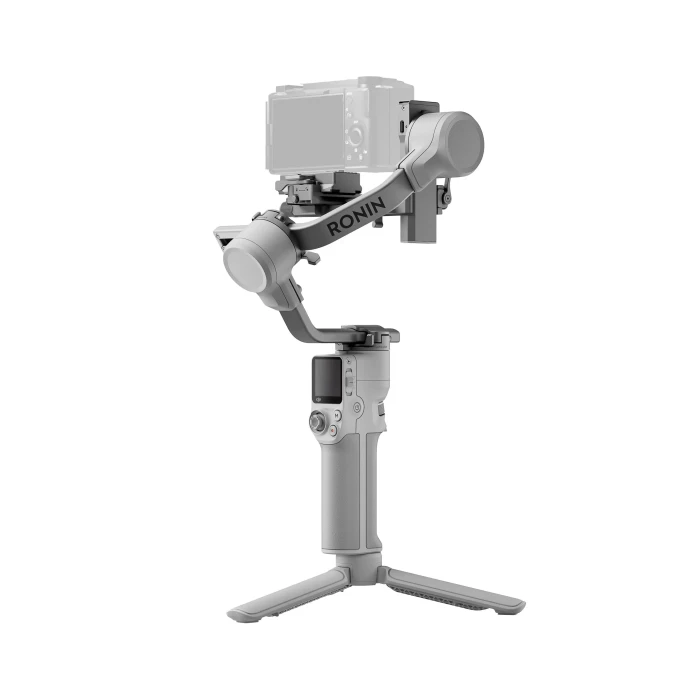

DJI RS4 MINI STANDARD

Weight and Payload

Gimbal Weight

(including gimbal, battery grip, and quick-release plate)

890 g (2 lbs)

1.4 kg (3.0 lbs)

1.6 kg (3.5 lbs)

Tested Payload

2 kg (4.4 lbs)

3 kg (6.6 lbs)

4.5 kg (10 lbs)

Recommended Camera and Lens Combination

Sony: A7S3/A7M4/A7C + FE 24-70 mm F2.8 GM II
Sony: A6400 + E 16-50 mm F3.5-5.6
Canon: EOS R5 + RF 24-70 mm F2.8
Canon: EOS R7 + RF 15-30 mm F4.5-6.3
Nikon: Z7 II + Z 24-70 mm F2.8
Nikon: Z50 + Z 24-50 mm F4.0-6.3
Panasonic: S5 + L 20-60mm F3.5-5.6
Fujifilm: FX-T30 II + XC 15-45 mm F3.5-5.6

Sony: A7S3/A7M4/A7C/A1 + FE 24-70 mm F2.8
Canon: R5/R6 + RF 24-70 mm F2.8
Nikon: Z6 II/Z7 II + Z 24-70 mm F2.8
Panasonic: GH6 + M4/3 12-60 mm F2.8-4.0
Fujifilm: X-T4 + X 16-55 mm F2.8

Red: Komodo + RF 24-70 mm F2.8
Blackmagic Design: BMPCC 6K Pro + EF 24-70 mm F2.8
Sony: FX6/FX3 + FE 24-70 mm F2.8
Canon: C70/R5C/R3 + RF 24-70 mm F2.8
Nikon: Z9 + Z 24-70 mm F2.8
Panasonic: S1H + L 24-70 mm F2.8

Use Scenarios

Standalone Gimbal

Single-handed, briefcase, 3rd-gen native vertical shooting

Single-handed, dual-handed, briefcase, 2nd-gen native vertical shooting

Single-handed, dual-handed, briefcase, 2nd-gen native vertical shooting

Expansion

N/A

Briefcase control handle, ring handle

Vehicle mount, Steadicam, slider, cable cam, jib

Gimbal Design

Axis Locks

2nd-gen automated axis locks

2nd-gen automated axis locks

2nd-gen automated axis locks

Axis Arm Material

Aluminum alloy, Teflon™ interlayers

Aluminum alloy, Teflon™ interlayers

Carbon fiber, Teflon™ interlayers

Appearance

Conventional design

Ronin next-gen red and black design

Ronin next-gen red and black design

Balancing Experience

Quick-Release Plate

Dual-layered (with adjustable placement guide),
Positioning slots in the upper quick-release plate

Dual-layered (with adjustable placement guide)

Dual-layered (with adjustable placement guide), extended

Fine-Tuning Knob

Yes

Yes

Yes

Key Features

Stabilization Algorithm

4th-Gen RS Stabilization Algorithm

4th-Gen RS Stabilization Algorithm

4th-Gen RS Stabilization Algorithm

Shutter Connection

Bluetooth, shutter release cable

Bluetooth, shutter release cable

Bluetooth, shutter release cable

Parameter Setting Screen

1.4″ LCD full-color touchscreen

1.8″ OLED full-color touchscreen

1.8″ OLED full-color touchscreen

Shortcut

Gimbal mode switch, joystick mode switch

Gimbal mode switch, joystick mode switch

Gimbal mode switch, joystick mode switch

Accessory Ecosystem

Focusing System

N/A

N/A

2nd-gen LiDAR focusing system (multi-point)

Video Transmission System

N/A

DJI Ronin Image Transmitter

DJI Transmission, DJI Ronin Image Transmitter

Intelligent Tracking and Composition

DJI RS Intelligent Tracking Module

DJI RS Intelligent Tracking Module

DJI RS Intelligent Tracking Module

Expansion Port

NATO port × 1
USB-C control port × 1

RSA port × 1
NATO port × 2
Charging adapter port × 1
USB-C control port × 3

RSA port × 2
NATO port × 2
Charging adapter port × 1
USB-C control port × 3

Charging and Runtime

Battery Design

Not detachable

Detachable

Detachable

Runtime

13 hours

Max 29.5 hours*

* Require the DJI RS BG70 High-Capacity Battery Grip, which is sold separately. Data was measured in a controlled environment. Actual experience may vary. For details, please refer to the product page on the official DJI website.

Max 29 hours*

* Require the DJI RS BG70 High-Capacity Battery Grip, which is sold separately. Data was measured in a controlled environment. Actual experience may vary. For details, please refer to the product page on the official DJI website.

Charging Time

1 hour 50 minutes

2.5 hours

1.5 hours
